Deposit form

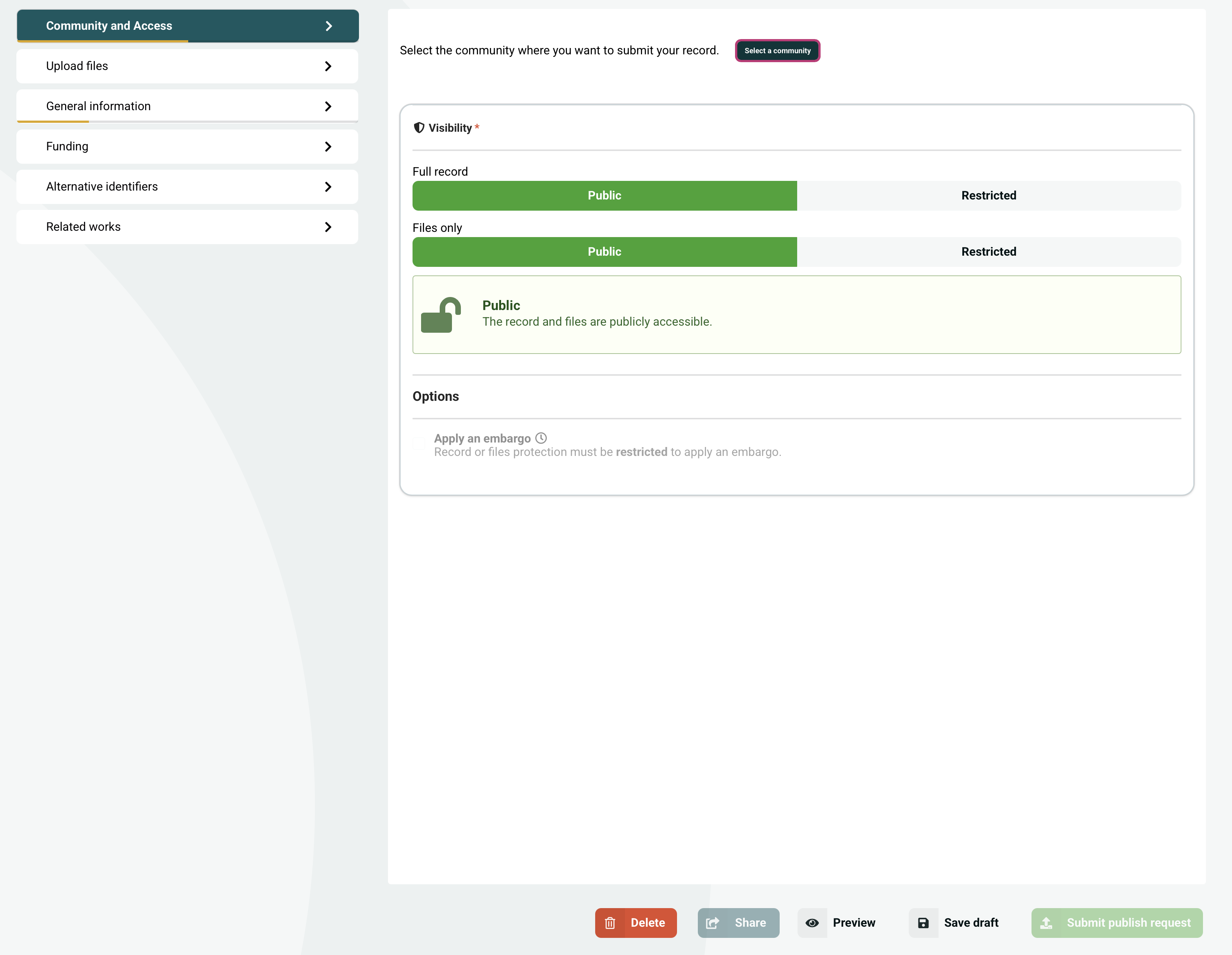

The deposit form enables users to create and edit records. It’s a React-based form application that provides field validation, dynamic sections, and integration with your record model.

Architecture

The deposit form follows this flow:

  1. User accesses record deposition URL (e.g., /mymodel/uploads/new for create, /mymodel/uploads/<pid_value> for edit) of a specific model
  2. UI Resource view prepares initial form data and configuration
  3. DepositForm.jinja component renders the page, embedding model-specific form app JS bundle, providing initial data through hidden inputs
  4. React app mounts parses initial data from rendered template hidden inputs and renders the form interface
  5. Form submission sends data to the API endpoint for validation and storage

UI Resource Configuration

The deposit routes are defined in your model’s UI resource config:

ui/mymodel/__init__.py
from oarepo_ui.resources.records.config import RecordsUIResourceConfig

class MymodelUIResourceConfig(RecordsUIResourceConfig):
    blueprint_name = "mymodel"
    url_prefix = "/mymodel"

    routes = {
        "deposit_create": "/uploads/new",
        "deposit_edit": "/uploads/<pid_value>",
        # ... other routes
    }

Form Configuration

Form field definitions, labels, hints, and validation rules are derived from your record model’s YAML schema definition. See Model schema customization for details on defining field types, labels, hints, and help text.

Template Structure

The deposit page uses a generic template provided by oarepo-ui (oarepo_ui.pages.DepositForm). This template handles the page structure and includes the deposit form container.

The generic oarepo_ui.pages.DepositForm template provides all standard deposit form functionality including the form container, data attributes, and React app initialization. Form field customization is done through the FormFieldsContainer component.

Available Context Variables

VariableDescription
themeTheme configuration
forms_configForm configuration
searchbar_configSearch bar configuration
recordCurrent record data (for edit mode)
communityCommunity data if applicable
community_uiCommunity UI data
filesRecord files entries
extra_contextAdditional context from resource components
ui_linksUI links
permissionsUser permissions
webpack_entryWebpack entry point for the deposit form JavaScript

Form Fields Container

The FormFieldsContainer.jsx component located at ui/mymodel/semantic-ui/js/mymodel/forms/FormFieldsContainer.jsx is where you define your form fields using AccordionField for sections.

This component is designed to be modified directly when implementing your deposit form. It receives the record prop and formConfig from the Redux store:

ui/mymodel/semantic-ui/js/mymodel/forms/FormFieldsContainer.jsx
import { TextField } from "@js/oarepo_ui/forms";
import { AccordionField } from "react-invenio-forms";
import { connect } from "react-redux";

const FormFieldsContainerComponent = ({ record }) => {
  return (
    <>
      <AccordionField
        includesPaths={["metadata.title"]}
        active
        label="Basic information"
      >
        <TextField fieldPath="metadata.title" />
      </AccordionField>

      <AccordionField
        includesPaths={["files.enabled"]}
        active
        label="Files upload"
      >
        {/* File upload component */}
      </AccordionField>
    </>
  );
};

const mapStateToProps = (state) => ({
  record: state.deposit.record,
});

export default connect(mapStateToProps)(FormFieldsContainerComponent);

See Deposit form components for available form field components.

Entry Point

The entry point at ui/mymodel/semantic-ui/js/mymodel/forms/index.js renders the deposit app and registers the FormFieldsContainer as a component override:

ui/mymodel/semantic-ui/js/mymodel/forms/index.js
import { DepositFormApp, parseFormAppConfig } from "@js/oarepo_ui/forms";
import ReactDOM from "react-dom";
import { OARepoDepositSerializer } from "@js/oarepo_ui/api";
import FormFieldsContainer from "./FormFieldsContainer";

const recordSerializer = new OARepoDepositSerializer(
  ["errors", "expanded"],
  ["__key"]
);

const { rootEl, config, ...rest } = parseFormAppConfig();
const overridableIdPrefix = config.overridableIdPrefix;

export const componentOverrides = {
  [`${overridableIdPrefix}.FormFields.container`]: FormFieldsContainer,
};

ReactDOM.render(
  <DepositFormApp
    config={config}
    {...rest}
    recordSerializer={recordSerializer}
    componentOverrides={componentOverrides}
  />,
  rootEl
);

The copier template configures the webpack entry point automatically. Developers only need to modify the FormFieldsContainer component to add their form fields.

See Component Override for more details on component overrides.

Replacing the Default Deposit Template

By default, the deposit form page uses the generic oarepo_ui.pages.DepositForm template.

If you need to replace the entire deposit form template with your own model-specific implementation:

Create a Custom Page Component

ui/mymodel/templates/semantic-ui/mymodel/pages/DepositForm.jinja
{#def theme, forms_config, record, community, files, extra_context, ui_links, permissions, webpack_entry #}
{%- extends "invenio_app_rdm/records/deposit.html" -%}

{# Add custom content above the form #}
{%- block page_body %}
  {% if extra_context.get('show_custom_banner') %}
  <div class="ui message info">
    <i class="info circle icon"></i>
    {{ extra_context.get('custom_banner_text', _('Important: Review the guidelines before submitting')) }}
  </div>
  {% endif %}
  {{ super() }}
{%- endblock %}

{%- block javascript %}
    {% include "oarepo_ui/javascript.html" %}
    {{ webpack[webpack_entry] }}
{%- endblock %}

Register it in your UI resource config:

ui/mymodel/__init__.py
class MymodelUIResourceConfig(RecordsUIResourceConfig):
    templates = {
        "deposit_create": "mymodel.pages.DepositForm",
        "deposit_edit": "mymodel.pages.DepositForm",
    }

See JinjaX Components for more on creating page components.

Adding Form Context Data

Add or modify form configuration and context variables through resource components:

ui/mymodel/components.py
from oarepo_ui.resources.components import UIResourceComponent

class MymodelFormComponent(UIResourceComponent):
    def before_ui_create(self, resource, request, extra_context, **kwargs):
        # Add data available in create mode
        extra_context["extra_form_options"] = {
            "customFeature": True,
        }

    def before_ui_edit(self, resource, request, extra_context, **kwargs):
        # Add data available in edit mode
        record = extra_context.get("record")
        if record:
            extra_context["record_history"] = self._get_history(record)

Register in your UI resource config:

ui/mymodel/__init__.py
class MymodelUIResourceConfig(RecordsUIResourceConfig):
    components = [
        MymodelFormComponent,
    ]
